Sub report generating extra spaces automatically in report RRS feed

  • Question

  • User1625346120 posted

    Hi! I am using SQL Server 2012 with Report Builder 3.0. I have created a report in which i have used one sub report. As indicated by the arrows in the image those 3 cells are merged and one sub report is placed their. Now when report is generated, it creates extra spaces in parent report.
    Reference Image :

    Sub report details >>>

    Orientation : landscape
    Width : 16.9cm
    Height : 1.7 cm
    Margin : 0px from all sides.

    Body properties of subreport ::::
    Size: 168.0798mm, 16.84792mm
    ConsumeContainerSpace : true

    Thursday, May 19, 2016 12:24 PM

Answers

  • User1625346120 posted

    Just setting cangrow and canshrink to false solved my problem inside sub report fields.

    • Marked as answer by Anonymous Thursday, October 7, 2021 12:00 AM
    Monday, May 23, 2016 7:54 AM

All replies

  • User-219423983 posted

    Hi emadkhan,<!--?xml:namespace prefix = "o" ns = "urn:schemas-microsoft-com:office:office" /--><o:p></o:p>

    You’d better first make sure the subreport report body size and tablix with the same size. Then, you could make the table, background of your sub report and parent report have the different color, so that you could find out where create the blank easily.<o:p></o:p>

    Best Regards, <o:p></o:p>

    Weibo Zhang<o:p></o:p>

    Friday, May 20, 2016 2:42 AM
  • User1625346120 posted

    Hi Wehbo Zang,

    I have act accordingly as you stated.

    For further reference please see these images.

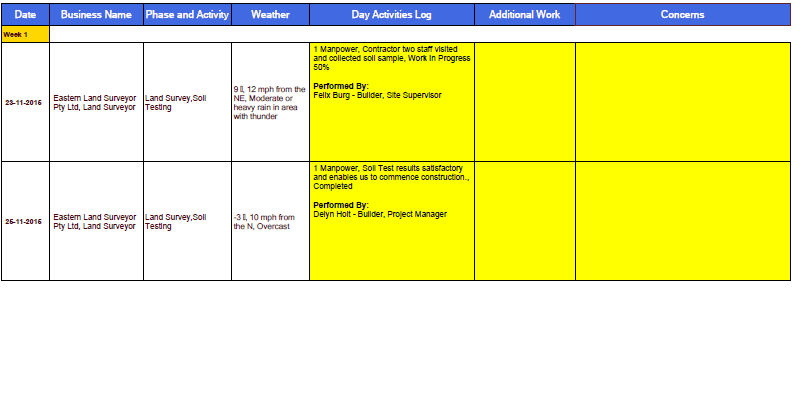

    After setting the sub report bg to yellow and then generating the  report it seems like this :

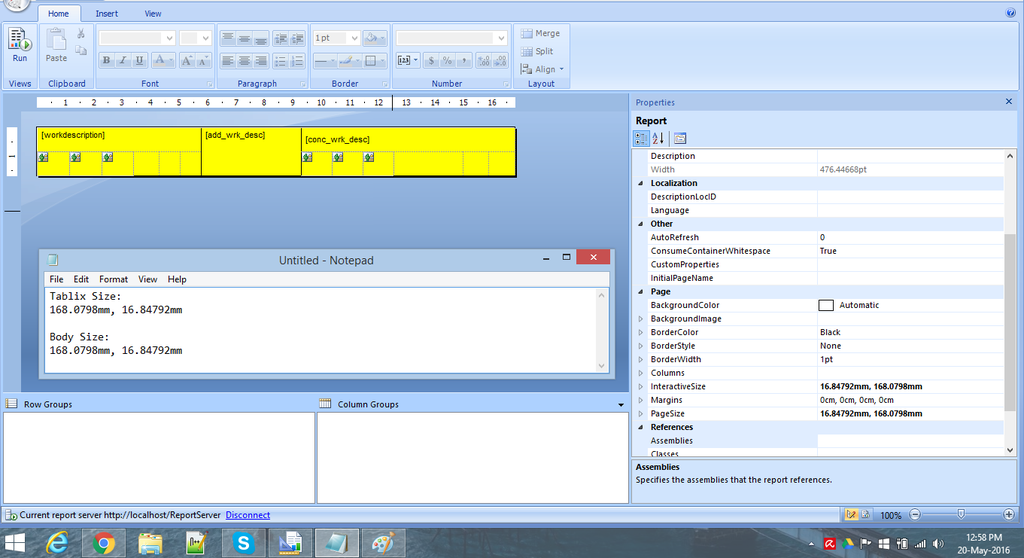

    Tablix Size:
    168.0798mm, 16.84792mm

    Body Size:
    168.0798mm, 16.84792mm

    Report Details >

    Interactive Size: 16.84792mm, 168.0798mm

    Margins: 0cm, 0cm, 0cm, 0cm

    Page Size: 16.84792mm, 168.0798mm

    Friday, May 20, 2016 8:04 AM
  • User1625346120 posted

    Just setting cangrow and canshrink to false solved my problem inside sub report fields.

    • Marked as answer by Anonymous Thursday, October 7, 2021 12:00 AM
    Monday, May 23, 2016 7:54 AM
